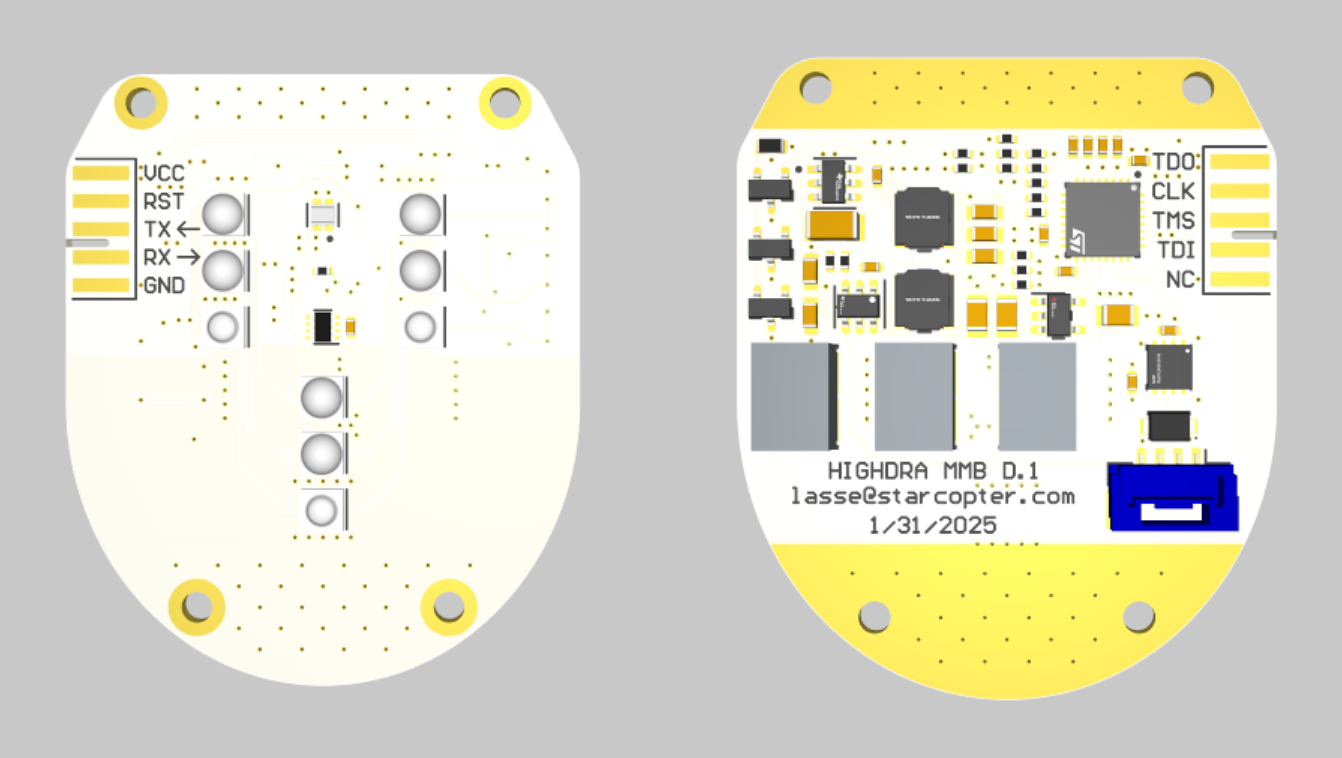

Motor Mount (MMB, Rev. D.1)¶
Further Documentation & Links¶
Old Gitlab Project
Sensors¶
- ADC
- Temp (2x)
- Voltage VMMB
- CAN
- GPIO outputs
- R, G, B Led output
- Enable for R, G, B
- PWM Dimm (for LEDs)
- I²C
- Optical Light Sensor OPT4001DTSR
External OPT4001 Driver example (python)
Source: Github - PyCubed-Mini CircuitPython_OPT4001
"""
CircuitPython driver for the OPT4001 ALSO
SOT-5X3 variant and PicoStar variant
**Authors**
Thomas Damiani
**Software Requirements**
* Adafruit CircuitPython Firmware (8.0.5+)
https://github.com/adafruit/circuitpython/releases/tag/8.0.5
* Adafruit Bus Device Library
https://github.com/adafruit/Adafruit_CircuitPython_BusDevice
* Adafruit Register Library
https://github.com/adafruit/Adafruit_CircuitPython_Register
"""
import time
# from micropython import const
from adafruit_bus_device.i2c_device import I2CDevice
from adafruit_register.i2c_bits import RWBits
from adafruit_register.i2c_bit import ROBit, RWBit
try:
import typing
from busio import I2C
from typing_extensions import Literal
except ImportError:
pass
# Registers as descirbed in page 25 of datasheet
RESULT_H = 0x00
RESULT_L = 0x01
FIFO_0_H = 0x02
FIFO_0_L = 0x03
FIFO_1_H = 0x04
FIFO_1_L = 0x05
FIFO_2_H = 0x06
FIFO_2_L = 0x07
THRESHOLD_L = 0x08
THRESHOLD_H = 0x09
CONFIGURATION = 0x0A
FLAGS = 0x0C
DEVICE_ID = 0x11
# package type
SOT_5X3 = 0
PICOSTAR = 1
class OPT4001:
"""
Driver for the OPT4001 ambient light sensor
Positional Arguments
++++++++++++++++++++
**i2c_bus**
Type - busio.I2C.\n
The i2c_bus you are using for I2C communication.
**address**
The i2c address of the sun sensor you are using. the default is 0x44
Keyword Arguments
+++++++++++++++++
* bold value is the default value
**quick_wakeup**
wakeup mode from Standby in one-shot mode. True activates quick Wake-up which
gets out of standby faster as the cost of larger power consumption.
+-------------------------------+-----------------------+
| True | **False** |
+-------------------------------+-----------------------+
| active | **inactive** |
+-------------------------------+-----------------------+
**lux_range**
the range which the result register will use to return a result
+-----------+-----------+-----------+-----------+-----------+
| 0 | 1 | 2 | 3 | 4 |
+-----------+-----------+-----------+-----------+-----------+
| 459 lux | 918 lux | 1.8 klux | 3.7 klux | 7.3 klux |
+-----------+-----------+-----------+-----------+-----------+
+-----------+-----------+-----------+-----------+-----------+
| 5 | 6 | 7 | 8 | **12** |
+-----------+-----------+-----------+-----------+-----------+
| 14.7 klux | 29.4 klux | 58.7 klux | 117.4 klux| **auto** |
+-----------+-----------+-----------+-----------+-----------+
**conversion_time**
How long the device will take to be ready with the next measurement
+-----------+-----------+-----------+-----------+-----------+-----------+
| 0 | 1 | 2 | 3 | 4 | 5 |
+-----------+-----------+-----------+-----------+-----------+-----------+
| 600us | 1ms | 1.8ms | 3.4ms | 6.5ms | 12.7ms |
+-----------+-----------+-----------+-----------+-----------+-----------+
+-----------+-----------+-----------+-----------+-----------+-----------+
| 6 | 7 | **8** | 9 | 10 | 11 |
+-----------+-----------+-----------+-----------+-----------+-----------+
| 25ms | 50ms | **100ms** | 200ms | 400ms | 800ms |
+-----------+-----------+-----------+-----------+-----------+-----------+
**Operating Mode**
what mode the sensor will operate in
+-----------+-----------+-----------+-----------+
| **0** | 1 | 2 | 3 |
+-----------+-----------+-----------+-----------+
| **Power | Forced | One-shot | continuous|
| Down** | auto-range| | |
| | One-shot | | |
+-----------+-----------+-----------+-----------+
**Latch**
which interrupt mechanism the sensor will use when an interrupt is needed. Interrupt
reporting mechanisms as described in page 14 and 15 of the datasheet\n
+-------------------------------+-----------------------+
| True | **False** |
+-------------------------------+-----------------------+
| Transparent hysteresis mode |**Latched window mode**|
+-------------------------------+-----------------------+
**int_pol**
INT pin polarity
+-------------------------------+-----------------------+
| True | **False** |
+-------------------------------+-----------------------+
| Active High | **Active Low** |
+-------------------------------+-----------------------+
**fault_count**
describes how many consecutive faults are required to trigger the threshold mechanisms.\n
+------------+-----------+-----------+-----------+-----------+
|input | **0** | 1 | 2 | 3 |
+------------+-----------+-----------+-----------+-----------+
|fault count | **one** | two | four | eight |
+------------+-----------+-----------+-----------+-----------+
**package**
what package your ambient sun sensor is using\n
**0 - SOT-5x3**\n
1 - PicoStar
"""
# Configuration settings
# Locations of these bits are descirbed in page 30 and 31 of the datasheet
quick_wakeup = RWBit(CONFIGURATION, 15, register_width=2, lsb_first=False)
lux_range = RWBits(4, CONFIGURATION, 10, register_width=2, lsb_first=False)
conversion_time = RWBits(4, CONFIGURATION, 6, register_width=2, lsb_first=False)
operating_mode = RWBits(2, CONFIGURATION, 4, register_width=2, lsb_first=False)
latch = RWBit(CONFIGURATION, 3, register_width=2, lsb_first=False)
int_pol = RWBit(CONFIGURATION, 2, register_width=2, lsb_first=False)
fault_count = RWBits(2, CONFIGURATION, 0, register_width=2, lsb_first=False)
# flags
overload_flag = ROBit(FLAGS, 3, register_width=2, lsb_first=False)
conversion_ready_flag = ROBit(FLAGS, 2, register_width=2, lsb_first=False)
flag_h = ROBit(FLAGS, 1, register_width=2, lsb_first=False)
flag_L = ROBit(FLAGS, 0, register_width=2, lsb_first=False)
def __init__(self,
i2c_bus: I2C,
address: int = 0x44,
package: int = 0,
quick_wakeup: bool = False,
lux_range: int = 0b1100,
conversion_time: int = 0b1000,
operating_mode: int = 0b00,
latch: bool = True,
int_pol: bool = False,
fault_count: int = 0b00) -> "OPT4001":
self.i2c_device = I2CDevice(i2c_bus, address)
"""
i2c_device: and I2CDevice initialized using the input i2c_bus and address
"""
self.quick_wakeup = quick_wakeup
"""
quick_wakeup: wakeup mode from Standby in one-shot mode. True activates quick Wake-up which
gets out of standby faster as the cost of larger power consumption.
"""
self.lux_range = lux_range
"""
Lux range: the range which the result will use to return a result\n
| 0 | 1 | 2 | 3 | 4 | 5 |
| 459lux | 918lux | 1.8klux | 3.7klux | 7.3klux | 14.7klux |
| 6 | 7 | 8 | 12 |
| 29.4klux | 58.7klux | 117.4klux | auto |
"""
self.conversion_time = conversion_time
"""
Conversion Time: How long the device will take to be ready with the next measurement\n
| 0 | 1 | 2 | 3 | 4 | 5 |
| 600us | 1ms | 1.8ms | 3.4ms | 6.5ms | 12.7ms |
| 6 | 7 | 8 | 9 | 10 | 11 |
| 25ms | 50ms | 100ms | 200ms | 400ms | 800ms |
"""
self.operating_mode = operating_mode
"""
Operating Mode\n
0: Power Down\n
1: Forced Auto-range One-shot\n
2: One-shot\n
3: Continuous\n
"""
self.latch = latch
"""
Interrupt reporting mechanisms as described in page 14 and 15 of the datasheet\n
0: Transparent hysteresis mode\n
1: Latched window mode\n
"""
self.int_pol = int_pol
"""
INT pin polarity\n
0: Active Low\n
1: Active High\n
"""
self.fault_count = fault_count
"""
Fault count describes how many consecutive faults are required to trigger the threshold
mechanisms.\n
0: one fault\n
1: two faults\n
2: four faults\n
3: eight faults\n
"""
self.package = package
"""
if your device is Picostar (1) or SOT-5x3 (0)
"""
self.buf = bytearray(3)
# check that the ID of the device matches what the datasheet says the ID should be
if not self.check_id():
raise RuntimeError("Could not read device id")
def read_u16(self, addr) -> None:
# first write will be to the address register
self.buf[0] = addr
with self.i2c_device as i2c:
# write to the address register, then read from register into buffer[0] and buffer[1]
i2c.write_then_readinto(self.buf, self.buf, out_end=1, in_start=0)
def check_id(self) -> bool:
# first check that DIDL == 0
self.read_u16(DEVICE_ID)
DIDL = (self.buf[0] >> 4) & ((1 << 2) - 1) # 13-12
if not DIDL == 0:
return False
# second check that DIDH == 0x121
DIDH = self.buf[0] & ((1 << 4) - 1) # 11-8
DIDH = (DIDH << 8) + self.buf[1] # add 7-0
if not (DIDH == 0x121):
return False
return True
def get_exp_msb(self, register) -> tuple:
# read register into buffer
self.read_u16(register)
# separate each component
exponent = (self.buf[0] >> 4) & ((1 << 4) - 1) # 15-12
result_msb = (self.buf[0] & ((1 << 4) - 1)) # 11-8
result_msb = result_msb << 8 # pad
result_msb += self.buf[1] # add 7-0
return exponent, result_msb
def get_lsb_counter_crc(self, register) -> tuple:
# read register into buffer
self.read_u16(register)
# separate each component
result_lsb = self.buf[0] # 15-8
counter = (self.buf[1] >> 4) & ((1 << 4) - 1) # 7-4
crc = self.buf[1] & ((1 << 4) - 1) # 3-0
return result_lsb, counter, crc
def calc_lux(self, exponent, result_msb, result_lsb) -> float:
mantissa = (result_msb << 8) + result_lsb
adc_codes = mantissa << exponent
if self.package == PICOSTAR:
lux = adc_codes * 0.0003125
if self.package == SOT_5X3:
lux = adc_codes * 0.0004375
return lux
def result_of_addr(self, just_lux) -> list:
"""
Gets Lux value from the result register. returns lux value as a float.
If just_lux is false the counter and crc bits will be added and a tuple of the
3 measurements will be returned
"""
# wait for conversion to be ready
start_time = time.monotonic() + 1.1
while time.monotonic() < start_time:
if self.conversion_ready_flag:
break
time.sleep(0.001)
"""
15-12: EXPONENT
11-0: RESULT_MSB
"""
exponent, result_msb = self.get_exp_msb(RESULT_H)
"""
15-8: RESULT_LSB
7-4: COUNTER
3-0: CRC
Calculation for the CRC bits are as follows
E = exponent
R = result
C = counter
X[0]=XOR(E[3:0],R[19:0],C[3:0]) XOR of all bits
X[1]=XOR(C[1],C[3],R[1],R[3],R[5],R[7],R[9],R[11],R[13],R[15],R[17],R[19],E[1],E[3])
X[2]=XOR(C[3],R[3],R[7],R[11],R[15],R[19],E[3])
X[3]=XOR(R[3],R[11],R[19])
"""
result_lsb, counter, crc = self.get_lsb_counter_crc(RESULT_L)
# equations from pages 17 and 18 of datasheet
mantissa = (result_msb << 8) + result_lsb
adc_codes = mantissa << exponent
lux = adc_codes * .0004375
return lux if just_lux else lux, counter, crc
def read_from_fifo(self, register_high, register_low, just_lux):
"""
Gets Lux value from specified FIFO register. returns lux value as a float.
If just_lux is false the counter and crc bits will be added and a tuple of the
3 measurements will be returned
"""
"""
15-12: EXPONENT
11-0: RESULT_MSB
"""
exponent, result_msb = self.get_exp_msb(register_high)
"""
15-8: RESULT_LSB
7-4: COUNTER
3-0: CRC
"""
result_lsb, counter, crc = self.get_lsb_counter_crc(register_low)
# equations from pages 17 and 18 of datasheet
mantissa = (result_msb << 8) + result_lsb
adc_codes = mantissa << exponent
lux = adc_codes * .0004375
return lux if just_lux else lux, counter, crc
@property
def lux(self) -> float:
"""
Reads out JUST the lux value from the result register. The lux is calculated from the
0x00 register and the 8 most significant bits of the 0x01 register.
From the 0x00 register bits 15-12 are the EXPONENT (E), while bits 11-0 are the RESULT_MSB. From
the 0x01 register bits 15-8 are the RESULT_LSB.
lux is calculated via:
lux = (((RESULT_MSB << 8) + RESULT_LSB) << EXPONENT) * 437.5E-6
"""
return self.result_of_addr(True)
@property
def result(self) -> tuple:
"""
Returns, as a tuple, the lux calculated from the register, the counter, and the crc bits
The Lux is calculated in the same way as the lux property. Refer to the lux property function for
a detailed description of the calculation.
The counter will count from 0 to 15 and then restart at 0 again. It is for knowing you have
successive measurements.
The CRC bits are for ensuring you are receiving the proper bits over your channel. The calculation
for these bits is as follows:
E = exponent bits
R = result bits
C = counter bits
X[0]
XOR ( E[3:0],R[19:0],C[3:0]) XOR of all bits
X[1]
XOR ( C[1], C[3], R[1], R[3], R[5], R[7], R[9], R[11], R[13], R[15], R[17], R[19], E[1], E[3])
X[2]
XOR ( C[3], R[3], R[7], R[11], R[15], R[19], E[3])
X[3]
XOR ( R[3], R[11], R[19])
"""
return self.result_of_addr(False)
def read_lux_FIFO(self, id: Literal[0, 1, 2]) -> float:
"""
Reads just the lux from the FIFO<id> register identically to the lux property. Returns the
calculated lux value as a float
"""
channels = {
0: (FIFO_0_H, FIFO_0_L),
1: (FIFO_1_H, FIFO_1_L),
2: (FIFO_2_H, FIFO_2_L)
}
register_h, register_l = channels[id]
return self.read_from_fifo(register_h, register_l, True)
def read_result_FIFO(self, id: Literal[0, 1, 2]) -> tuple:
"""
Reads the result from the FIFO<id> register identically to the result property. Returns the
calculated values as a tuple.
"""
channels = {
0: (FIFO_0_H, FIFO_0_L),
1: (FIFO_1_H, FIFO_1_L),
2: (FIFO_2_H, FIFO_2_L)
}
register_h, register_l = channels[id]
return self.read_from_fifo(register_h, register_l, False)
Processor Configuration¶
Pin Configuration¶
The following table shows the currently active pin configuration.
| Pin | Signal | Mode | OType | OSpeed | Pull | AF | Peripheral | Function |
|---|---|---|---|---|---|---|---|---|
| PA0 | VMMB_ADC |
Analog | ADC12_IN1 |
Voltage Monitoring | ||||
| PA2 | TEMP2 |
Analog | ADC1_IN3 |
Temperator sensor | ||||
| PA3 | TEMP1 |
Analog | ADC1_IN4 |
Temperator sensor | ||||
| PA5 | RGB_BLUE |
Output | OD | Low | Up | Status LED, init Hi-Z | ||
| PA6 | RGB_GREEN |
Output | OD | Low | Up | Status LED, init Hi-Z | ||
| PA7 | RGB_RED |
Output | OD | Low | Up | Status LED, init Hi-Z | ||
| PA8 | SDA |
AF | OD | Low | 4 | I2C2_SDA |
Digital Ambient Light Sensor Interface | |
| PA9 | SCL |
AF | OD | Low | 4 | I2C2_SCL |
Digital Ambient Light Sensor Interface | |
| PA10 | INT |
Input | Digital Ambient Light Sensor Interface | |||||
| PA11 | CAN_RX |
AF | 9 | FDCAN1_RX |
CAN | |||
| PA12 | CAN_TX |
AF | PP | Medium | 9 | FDCAN1_TX |
CAN | |
| PA13 | SWDIO |
AF | PP | Very High | Up | 0 | SWDIO_JTMS |
|
| PA14 | SWCLK |
AF | Down | 0 | SWCLK_JTCK |
|||
| PB3 | UART_TX |
AF | PP | Medium | 7 | USART2_TX |
Console | |
| PB4 | UART_RX |
AF | 7 | USART2_RX |
Console | |||
| PB5 | PWM_DIM |
AF | PP | Low | 10 | TIM17_CH1 |
PWM Output | |
| PB6 | EN_GREEN |
Output | PP | Medium | Enable Green Navigation LEDs | |||
| PB7 | EN_RED |
Output | PP | Medium | Enable Red Navigation LEDs | |||
| PB8 | EN_WHITE |
Output | PP | Medium | Enable White Navigation LEDs | |||
| PG10 | NRST |
Reset Button |
Subsystems¶
USART2¶
Debug console (logging).
TIM3¶
Timekeeper clock and FDCAN hardware timestamping.
TIM17¶
PWM Dimming Signal for the Navigation Lights.
FDCAN1¶
CAN (Cyphal) interface.
I2C2¶
I2C interface to communicate with the digital ambient light sensor chip.
CRC¶
Hardware CRC unit.
RNG¶
Random number generator, currently only used to generate a random boot ID exposed via the com.starcopter.boot_id Cyphal register.
ADC1, ADC2¶
Analog measurements from temperature sensors and VMMB power supply.
WWDG¶
System window watchdog with 209ms timeout configured.
